Specifications
(S)olid / (V)ented Solid
Bolt Circle Diameter Inches 4.5
Bolt Circle Diameter mms 114.3
Bolt/Hole Diameter Inches or Stud Sizes 0.496
Bolt/Hole Diameter mm or Stud Size 12.6
Height Inches 1.921
Height mm 48.8
Hub Hole/Wheel Reg Inches 2.524
Hub Hole/Wheel Reg mm 64.1
Min. Thick mm (Discard) 8.0
Min. Thickness Inches (Discard) 0.315
Mounting Type Floating
Nominal Thickness Inches 0.354
Nominal Thickness mm 9.0
Number of Studs 5
Outer Diameter Inches 11.087
Outer Diameter mm 281.6
Part No. 127.40068R
Weight (kgs) Including Box 3.99

Description

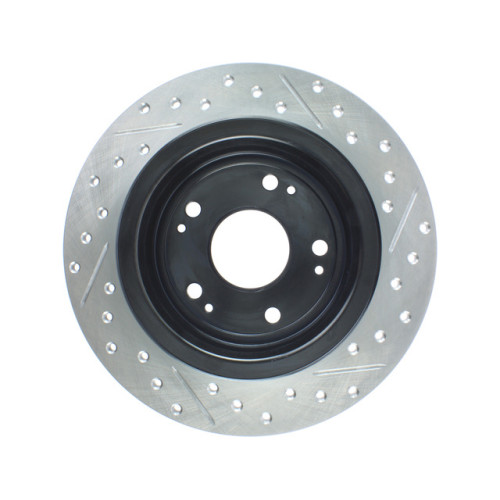

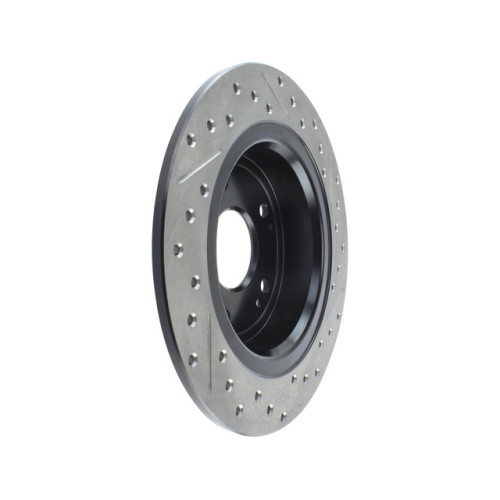

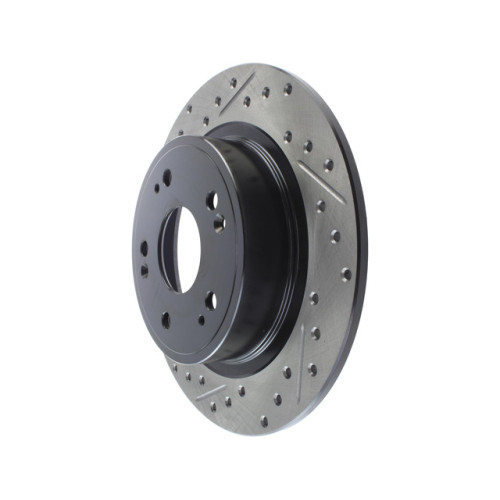

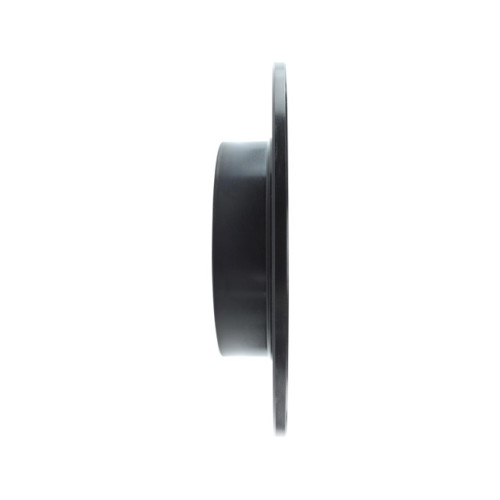

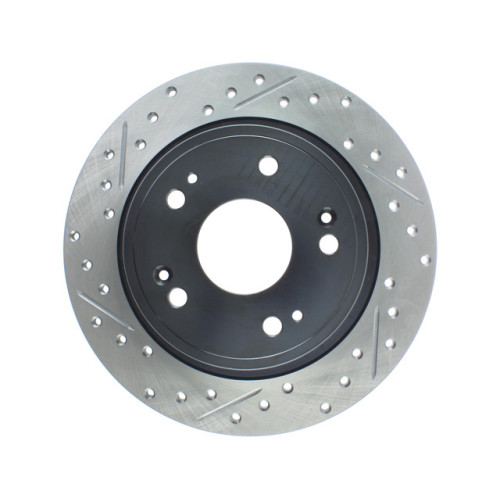

StopTech 127.40068R Drilled and Slotted High Carbon Brake Rotor Rear Right for Acura ILX, Acura TSX, Honda Accord and Honda HR-V.


StopTech Drilled and Slotted Sport Rotors are 1-piece direct replacement brake rotors for factory brake systems and stock calipers.  These rotors offer significantly improved braking performance over the OEM rotor. The unique cross-drilling and slotting aids with heat and brake dust dispersal, prevents glazing of the pads, adds bite and improves wet and dry braking performance. Built to last, the black e-coating provides protection from corrosion and the high carbon metallurgy (in most applications) offers quieter operation, better crack resistance and increased performance.

Drilled/Slotted rotors by StopTech are by far the best-looking quality High Carbon Brake Rotors on the market. Their dipped e-coating process still looks new after years of use and is the most impervious coating against environments that use salt and brine on the roads. Ideal for top-end Euro cars to sport-driven enthusiast vehicles from around the world. Looks are stunning inside open-style wheels. Sold each.

StopTech® 127 High-Carbon Cross-Drilled & Slotted Rotors

E-Coated Finish
Most StopTech® Rotors are finished with black e-coating on both sides of the hat, inside the cooling vanes, and on the outside edge. E-coating is a superior electro-statically applied finish designed to withstand 400 hours of salt-water exposure without rusting. This is especially important on both mounting faces of the hat where it touches the hub flange and back face of the wheel. Any accumulation of rust in these areas can lead to installed lateral run out issues.

Power Alloy Metallurgy
Power Alloy metallurgy is an exclusive feature of many StopTech® rotors. In specific vehicle applications, StopTech works with foundry partners to increase the molybdenum or carbon content of the castings, and to carefully control the cooling rate during production to reach targets for hardness and tensile strength.

Cooling Vane Design
Nearly all StopTech® 1-piece rotors have unique slot or hole patterns for the left and right sides of the vehicle. For these directional patterns, straight vane or pillar vane rotors are used to ensure that a drilled hole never touches a cooling vane.

Specs and ratings

Stopping Power




Noise Level




Performance Over Stock




Low
High

Part No:  127.40068R


Specification

Specifications
(S)olid / (V)ented Solid
Bolt Circle Diameter Inches 4.5
Bolt Circle Diameter mms 114.3
Bolt/Hole Diameter Inches or Stud Sizes 0.496
Bolt/Hole Diameter mm or Stud Size 12.6
Height Inches 1.921
Height mm 48.8
Hub Hole/Wheel Reg Inches 2.524
Hub Hole/Wheel Reg mm 64.1
Min. Thick mm (Discard) 8.0
Min. Thickness Inches (Discard) 0.315
Mounting Type Floating
Nominal Thickness Inches 0.354
Nominal Thickness mm 9.0
Number of Studs 5
Outer Diameter Inches 11.087
Outer Diameter mm 281.6
Part No. 127.40068R
Weight (kgs) Including Box 3.99

Vehicles

Make Model Engine Years Notes
Acura ILX A-Spec Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2017 - 2020Rear Right
Acura ILX Base Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2016 - 2021Rear Right
Acura ILX Tech Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2017 - 2020Rear Right
Acura TSX A-Spec Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2012 - 2012Rear Right
Acura TSX Base Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2009 - 2014Rear Right
Acura TSX Base Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2011 - 2013Rear Right
Acura TSX Base Wagon 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2011 - 2014Rear Right
Acura TSX Premium Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2013 - 2014Rear Right
Acura TSX Special Edition Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2012 - 2014Rear Right
Acura TSX Tech Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2013 - 2014Rear Right
Acura TSX V6 Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2010 - 2014Rear Right
Acura TSX V6 Tech Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2013 - 2014Rear Right
Honda Accord EX Coupe 2-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord EX Coupe 2-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2008 - 2013Rear Right
Honda Accord EX Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2020Rear Right
Honda Accord EX Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2015Rear Right
Honda Accord EX Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2017 - 2017Rear Right
Honda Accord EX Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2008 - 2013Rear Right
Honda Accord EX-L Coupe 2-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord EX-L Coupe 2-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord EX-L Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord EX-L Sedan 4-Door 2.0L 1996CC 122Cu. In. l4 GAS DOHC Turbocharged 2018 - 2020Rear Right
Honda Accord EX-L Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord EX-L Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord HFP Coupe 2-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2012 - 2012Rear Right
Honda Accord HFP Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2012 - 2012Rear Right
Honda Accord LX Coupe 2-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2008Rear Right
Honda Accord LX Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord LX Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord LX-P Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2012Rear Right
Honda Accord LX-S Coupe 2-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2008 - 2017Rear Right
Honda Accord SE Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2020 - 2021Rear Right
Honda Accord SE Sedan 4-Door 2.4L 2354CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2011 - 2012Rear Right
Honda Accord SE Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2017 - 2017Rear Right
Honda Accord Sport Plus Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord Sport SE Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2021 - 2021Rear Right
Honda Accord Sport Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord Sport Sedan 4-Door 2.0L 1996CC 122Cu. In. l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord Sport Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2013 - 2017Rear Right
Honda Accord Sport Special Edition Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2017 - 2017Rear Right
Honda Accord Touring Coupe 2-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2016 - 2016Rear Right
Honda Accord Touring Coupe 2-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2016 - 2017Rear Right
Honda Accord Touring Sedan 4-Door 1.5L 1497CC l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord Touring Sedan 4-Door 2.0L 1996CC 122Cu. In. l4 GAS DOHC Turbocharged 2018 - 2021Rear Right
Honda Accord Touring Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2014 - 2014Rear Right
Honda Accord Touring Sedan 4-Door 2.4L 2356CC 144Cu. In. l4 GAS DOHC Naturally Aspirated 2016 - 2016Rear Right
Honda Accord Touring Sedan 4-Door 3.5L 3471CC V6 GAS SOHC Naturally Aspirated 2013 - 2017Rear Right
Honda HR-V 1 Million Edition Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2019 - 2019Rear Right
Honda HR-V Epic Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2016 - 2019Rear Right
Honda HR-V EX Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2016 - 2022Rear Right
Honda HR-V EX-L Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2016 - 2022Rear Right
Honda HR-V LX Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2016 - 2022Rear Right
Honda HR-V Prime Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2020 - 2022Rear Right
Honda HR-V Sport Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2019 - 2022Rear Right
Honda HR-V Touring Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2018 - 2022Rear Right
Honda HR-V Uniq Sport Utility 4-Door 1.8L 1799CC l4 GAS SOHC Naturally Aspirated 2016 - 2022Rear Right

StopTech 127.40068R Drilled and Slotted High Carbon Brake Rotor

  • Brand: StopTech
  • Product Code: 127.40068R
  • Availability: In Stock
  • $374.01NZD

  • Ex Tax: $325.23NZD

Tags: StopTech 127.40068R Drilled and Slotted High Carbon Brake Rotor Rear Right for Acura ILX, Acura TSX, Honda Accord and Honda HR-V. Brake Rotors
